Raised-Cosine (RC) and Root-Raised-Cosine (RRC) filters are commonly used in digital data modems. Here, we provide design formulas for these filters.

Notes:

  • Each version of the same formula is algebraically equivalent; they just use different parameters.
  • The impulse response formulas include a “sinc(x)” term, that is, “sin(x)/x”. Although “sinc(0)” seemingly includes a divide-by-zero, L’Hospital’s rule indicates that the numeric value of sinc(0) is 1.0. Therefore, whenever you find a sinc(0) condition in using these formulas, just substitute 1.0.

1. Raised Cosine Forumlas

1.1 Frequency Response

Version 1

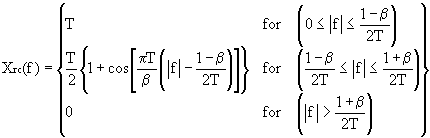

Equation 9-2-26 of Digital Communications [Pro95]:

Pro95 Equation 9-2-26

Definitions:

  • f is the frequency.
  • T is the symbol time.
  • beta is the rolloff factor.

Version 2

Equation 2.74 of Digital Communications: Fundamentals and Applications [Skl88]:

Skl88 Equation 2.74

Definitions:

  • fis the frequency
  • W – Wo is the excess bandwidth. (The rolloff factor is (W – Wo)/Wo.)

1.2 Impuse Response

Version 1

Equation 9-2-27 of Digital Communications [Pro95]:

Pro95 Equation 9-2-27

Definitions:

  • t is the time.
  • T is the symbol time.
  • beta is the rolloff factor.

Version 2

The following appears in the book Digital Communications: Fundamentals and Applications [Skl88]:

                       cos[2pi(W - Wo)t]
h(t) = 2Wo(sinc 2WoT) -------------------
                       1 - (4(W - Wo)t)^2

( Note: The book is missing some parentheses in denomintor term which have been added here.)

Version 3

Contributed by Clay S. Turner

        sin(bt)     cos(at)
h(t) =  ------- * ------------
          bt      1-(2at/pi)^2

where b = 2 pi f
and   a = 2 pi excess bandwidth.

2. Root-Raised Cosine Formulas

2.1 Frequency Response

Since the “root” aspect of a root-raised cosine filter is in the frequency domain, simply take the square root of the raised cosine frequency response given above to get the root-raised cosine frequency response.

2.2 Impulse Response

Version 1

Contributed by Clay S. Turner:

The RRC impulse response is given by:
h(t) =     pi^2      4at cos(t(a+b))+pi sin(t(b-a))
       ----------- * ------------------------------
        pi(a-b)-4a         t(16t^2 a^2 - pi^2)
where b= 2 pi f   (f is usually half of your symbol rate)
and   a= 2 pi excess bandwidth

Version 2

Contributed by Jim Shima:

total taps in filter are N (odd)

 Ne = (N-1)/2

 s = Ts/T
 k = index

 then,

 for n=0.. N

   let k = (n - Ne)  (make causal)


   h(n) =  T * sin[  pi * (r-1) * k * s]
                       - 4 * r * Ts * k * cos[ pi*(r+1) * k*s]  }
           --------------------------------------------------------------
               T^(0.5) * pi * k * Ts * [ 16*r^2*k^2*s^2 - 1]

0/0 case:

   h(n) = T^(-0.5)* [ 1 - r*(1 - (4/pi)) ]


 must also take care of any x/0 cases.
